AIMS Kuala Lumpur MY01

100 watts/sqft

120 watts/sqft

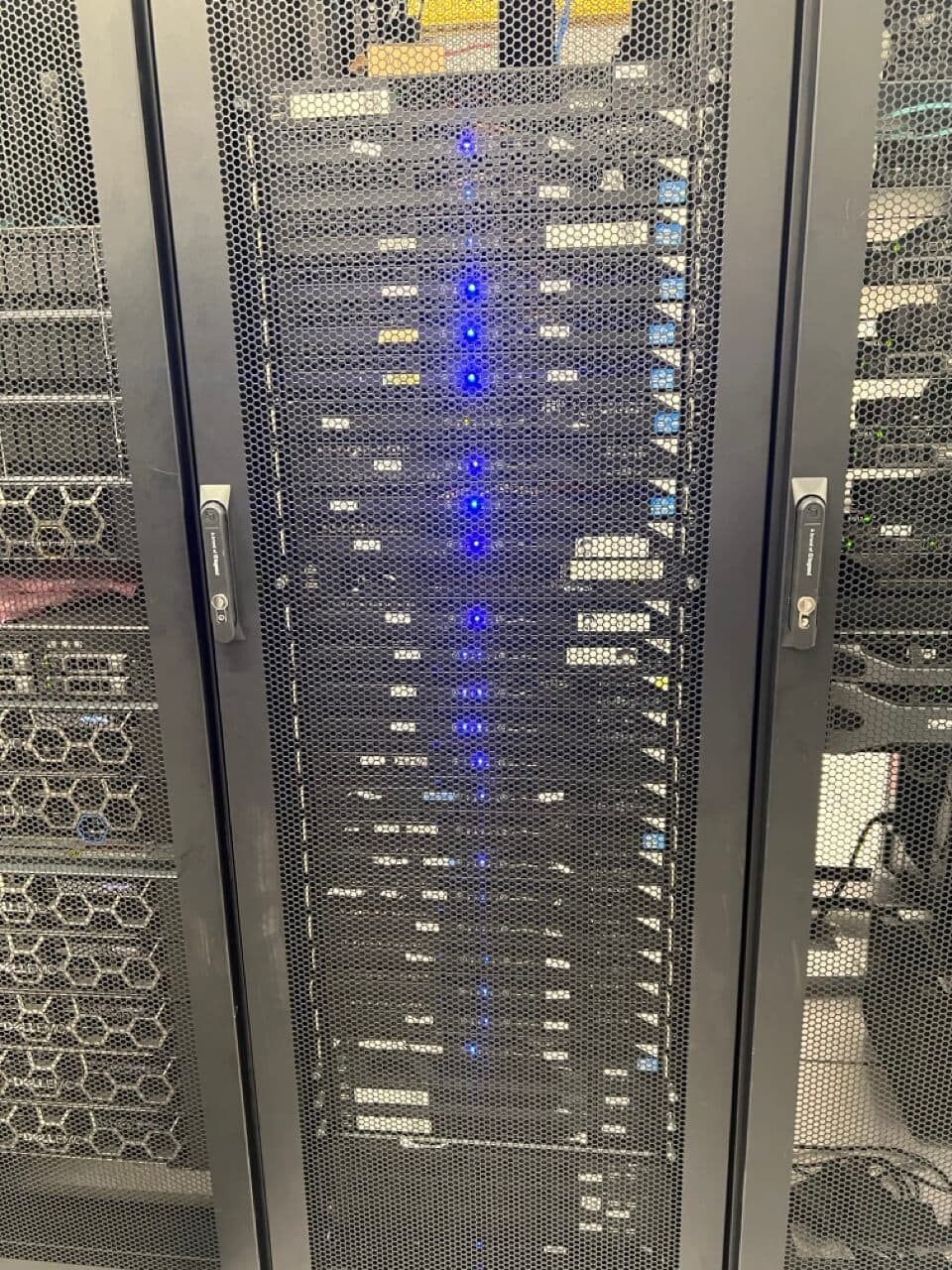

Hot aisle and cold aisle configuration:

• Cold Aisle Spacing: 1,200mm

• Hot Aisle Spacing: 1,000mm

1 x primary and 1 x redundant final sub-circuits from separate PDU within the data center

500 lux light density at the raised floor

No false ceilings for data center areas

2 hours fire-rated partition for each IG55 fire zone

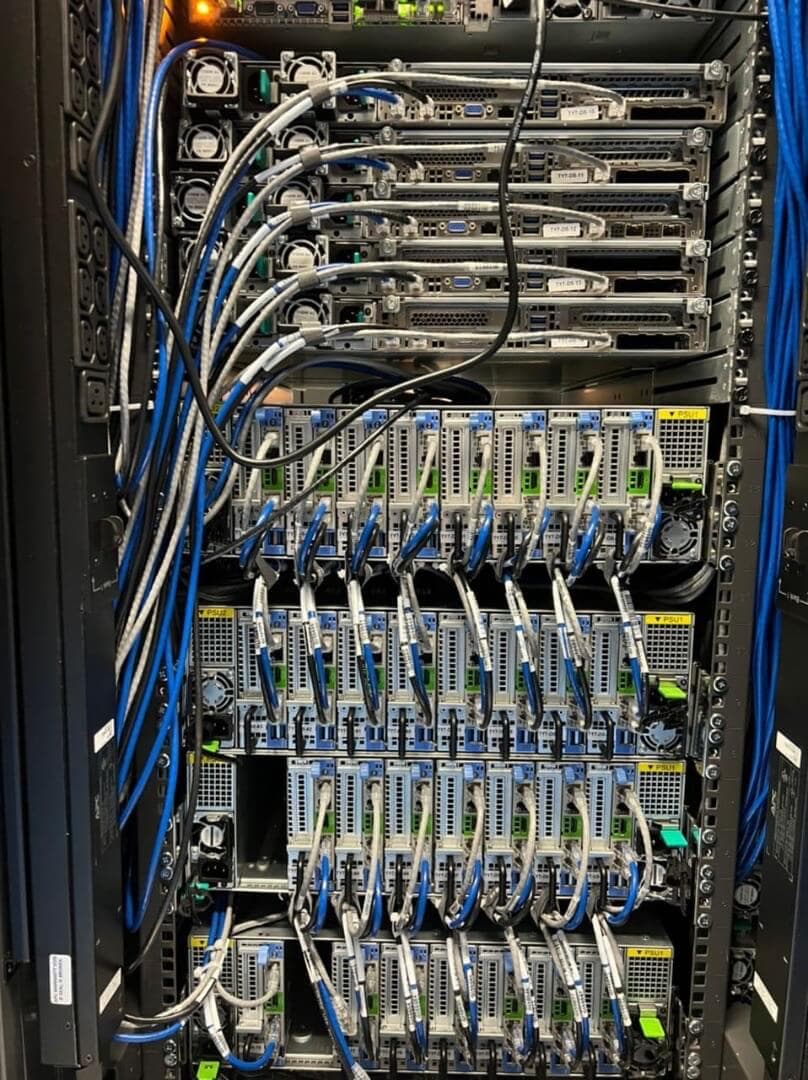

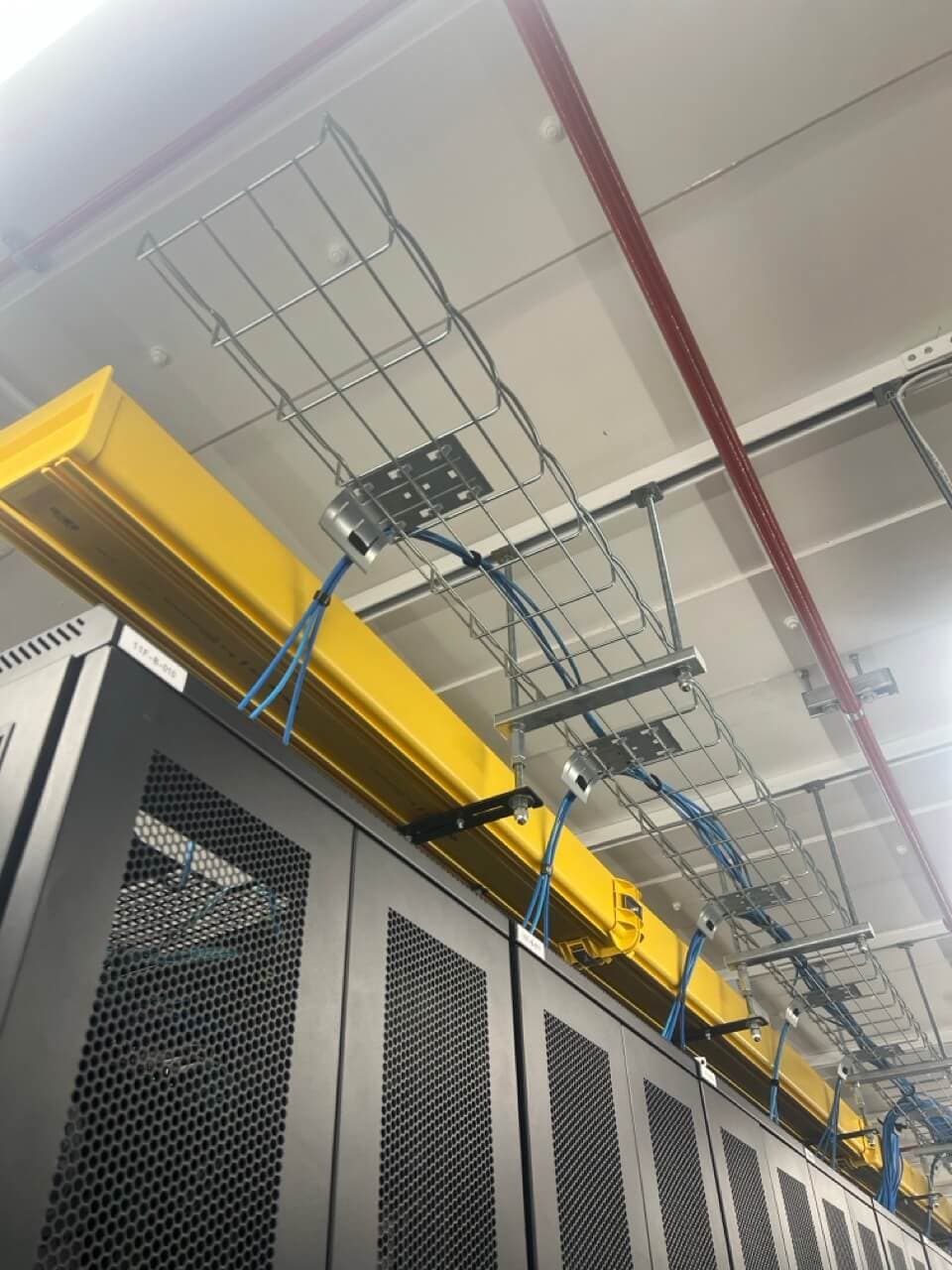

Two-tier overhead structured cabling system and infrastructure

3.8 meters, slab-to-slab

5 kN/sqm

6,500 sqft

5,000 sqft

600mm raised floor height

HPL wood-core rigid grid system

4.5kN

12kN/sqm

Thermal insulation Trocellen polyethylene foam

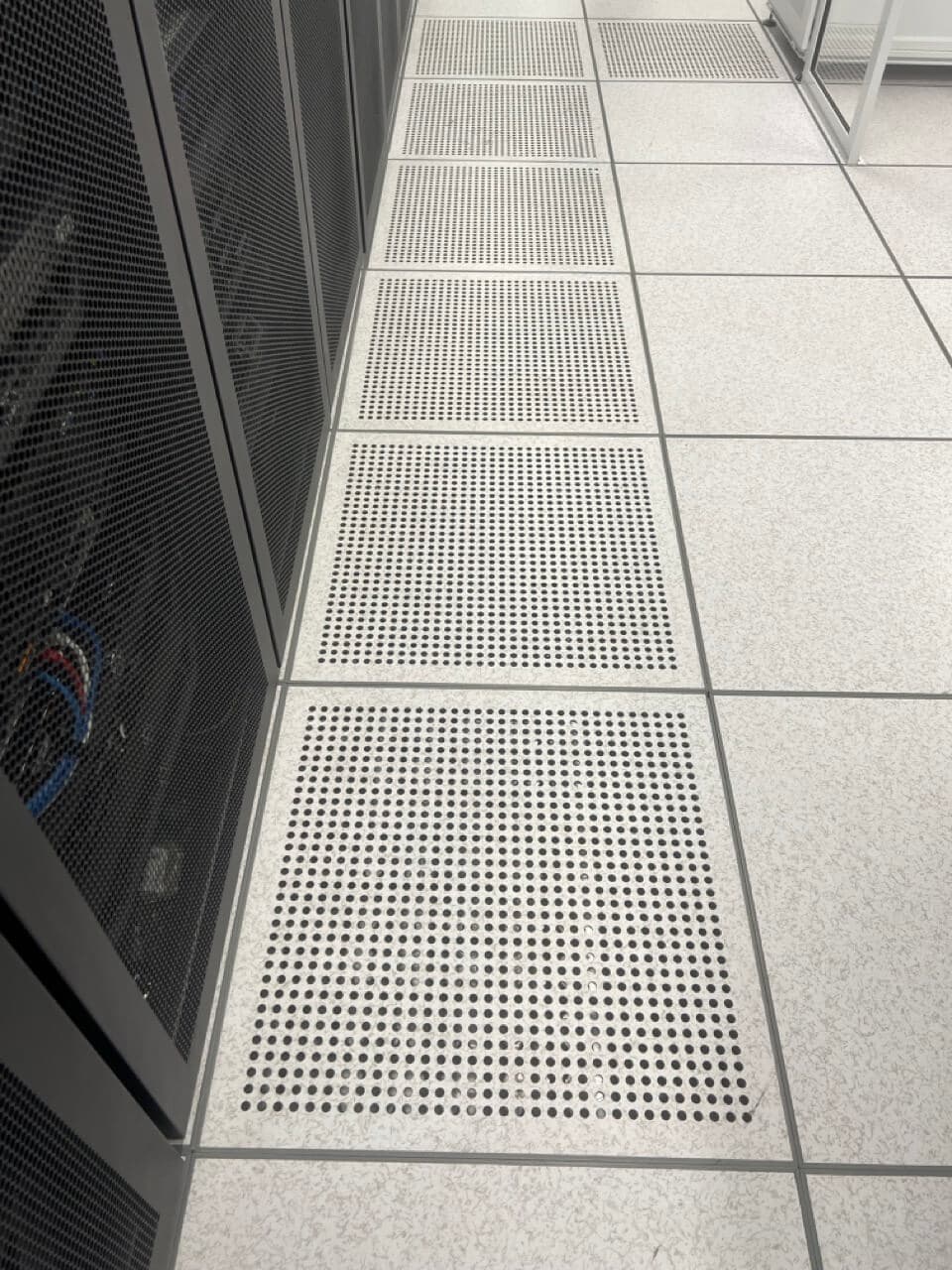

Perforated panels are placed at the cold aisle

11kV HT power feed from TNB power grid

10 MVA

Each PDU receives one 415Vac protected power supply from an UPS output panel within the data center.

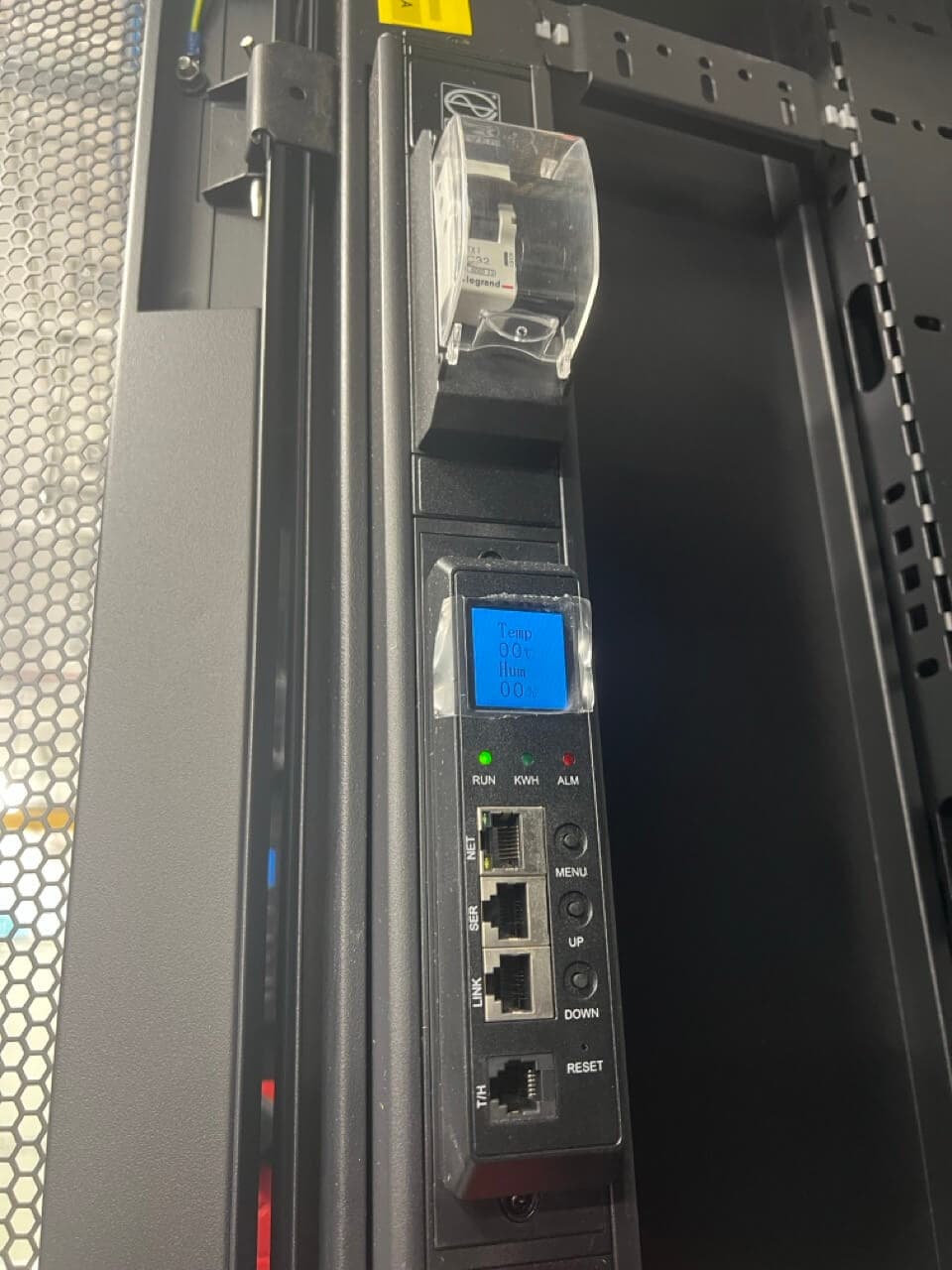

PDU is equipped with Digital Power Meter, KWH Meter. The power meters provide the electrical consumption reading of the PDU through the KWH meter or digital meter via Building Management System (BMS) interface.

K-13/ K-20 rated isolation transformer is included in each PDU

200kVA/225kVA

For 2N configuration

• 1 x primary and 1x redundant final circuit from separate PDU.

• STS backup is provided at the primary source at the PDU level

Each final circuit is individually protected by a MCB and isolation transformer at PDU.

Single-phase 20A, 30A single-phase and three-phase power supplies are available from the PDU

240V/ 50 Hz , 415V/ 50 Hz

2N configuration. The DC plant is supported by EPG

2 x 2000A

• True-online double conversion static UPS.

• DRUPS is installed to protect data center critical loads.

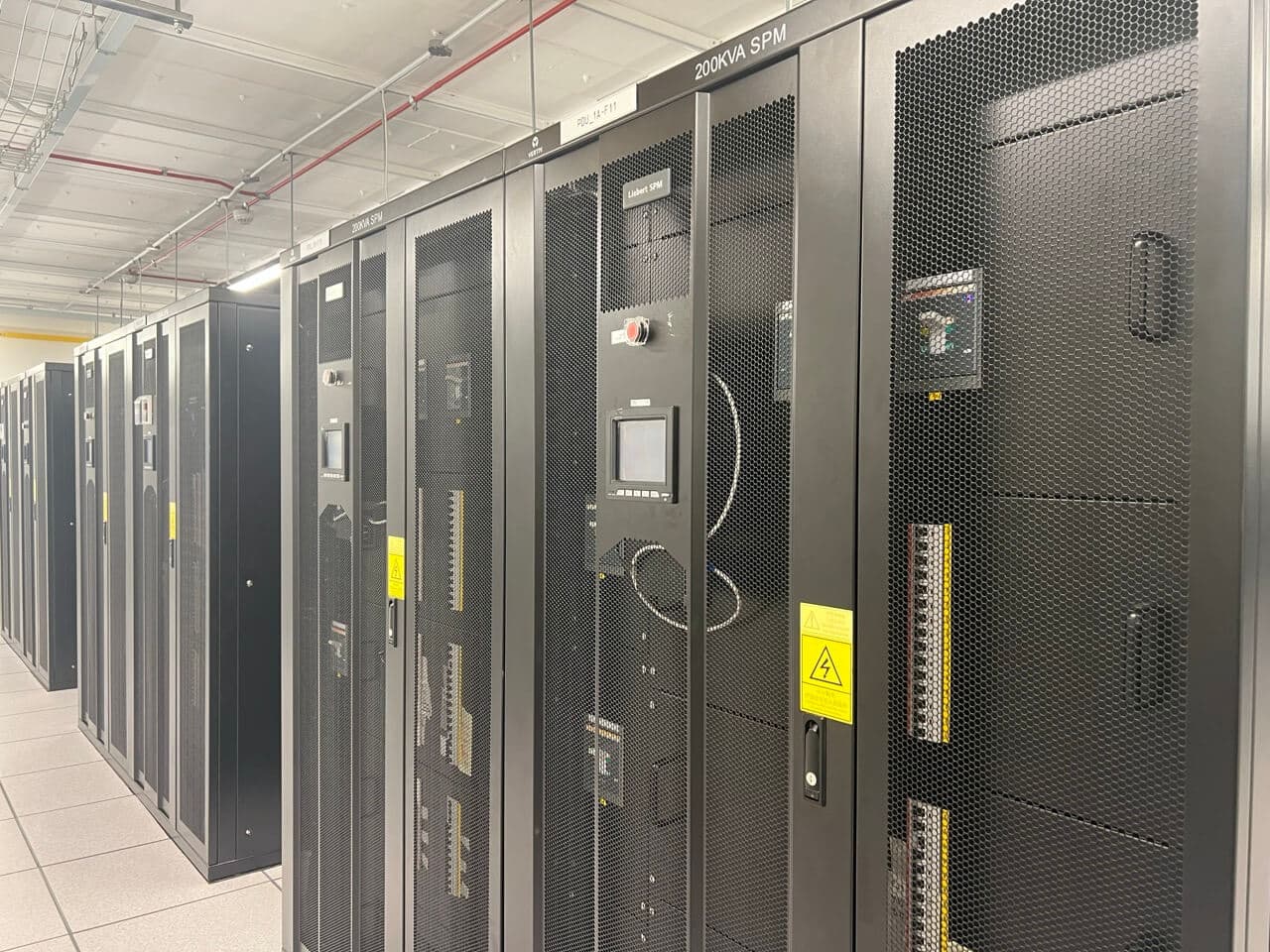

2 x 1200kVA and 800kVA

3200kVA

10 minutes at full load

3300kVA

2N configuration/ N+1with IP Bus configuration

Provided

Load bus synchronization is installed

• 2 x 2MVA backup diesel generators

• 3 x 1.1MVA backup diesel generators

• 2 x 1MVA backup diesel generators

• 2 x 500kVA backup diesel generators

External fuel tanks able to support EPG plant for 24 hours at full load

Data center, CRACs, chillers, lighting, and general services within data center areas

Air-cooled and water-cooled, chilled water-based ACMV system water is installed

N+1 (on chillers, cooling tower pumps and CRAC units)

Chiller system is supported by EPG Plant and Dynamic UPS System

Dual chilled water piping system from the chiller plant to the data center floor and ring chilled water circuit within the data center floor

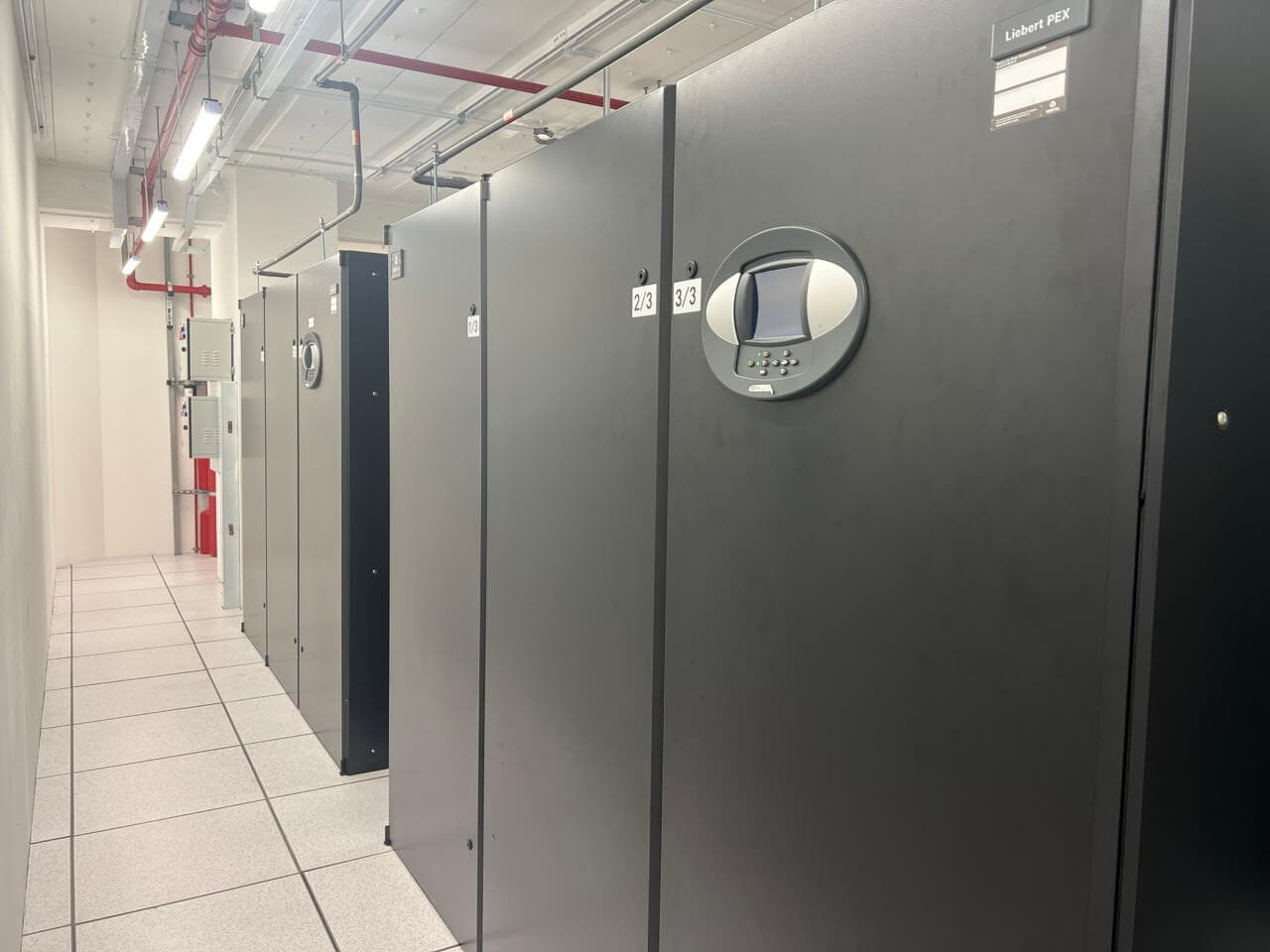

Down flow configuration computer room air condition unit

CRAC system in the same farm area are configured in N + 1 and equipped with an automatic changeover controller

Each CRAC is connected to two power sources from different ACMV panels via Automatic Transfer Switch (ATS)

CRAC system is supported by EPG Plant

• Overhead supplement cooling is installed to support high-density loads.

• Refrigerant gas pipes run from the supplement cooling distribution to the overhead supplement cooling system.

22°C +/- 3°C

50 RH +/- 10 RH

Cold aisle containment with access control is available

Inert Gas IG-55 fire suppression system is installed in the data center areas

IG-55 Gas suppression system is installed above and under the raised access floor in the data center areas

Two stages of alarms are implemented for heat and smoke detection system

HSSD system is implemented above CRAC and operated independently from the fire alarm system

Water leak detection system is installed in data center areas

Resistive leak tape (cable) monitoring leakage at any point along the perimeter of the data center area and surrounding the CRACs

• Safety ground and signal ground are provided in the data center area.

• Safety ground (electrical) grounding system is connected to the existing building's electrical grounding.

• All electrical grounding is connected to the main grounding bar, including the connections for the raised floor system base.

Signal ground is provided for each cabinet location under the raised floor

• Building Management System (BMS) to monitor and control all facilities within AIMS' data center.

• Automatic control and monitoring of the environmental control system.

• Monitoring of high-tension supplies.

• Monitoring of UPS and backup generator systems.

• Monitoring of switchboard, PDU, fans, CRAC units.

• Monitoring of fire safety system.

• Monitoring of water leak detection.

• Monitoring of room temperature and RH.

• 24 x 7 Service Operation Center

• 24 x 7 Facility Management team

• 24/7 on-site security

• 24/7 CCTV monitoring, supported by digital recording, with storage for up to 90 days at multiple sites

• Multi-layered security control

• Card access control system at all data center and building entrances and exits

Network Neutral Carrier

MYIX

NTT

TIME

HE

CT

CU

CMI

Telstra
